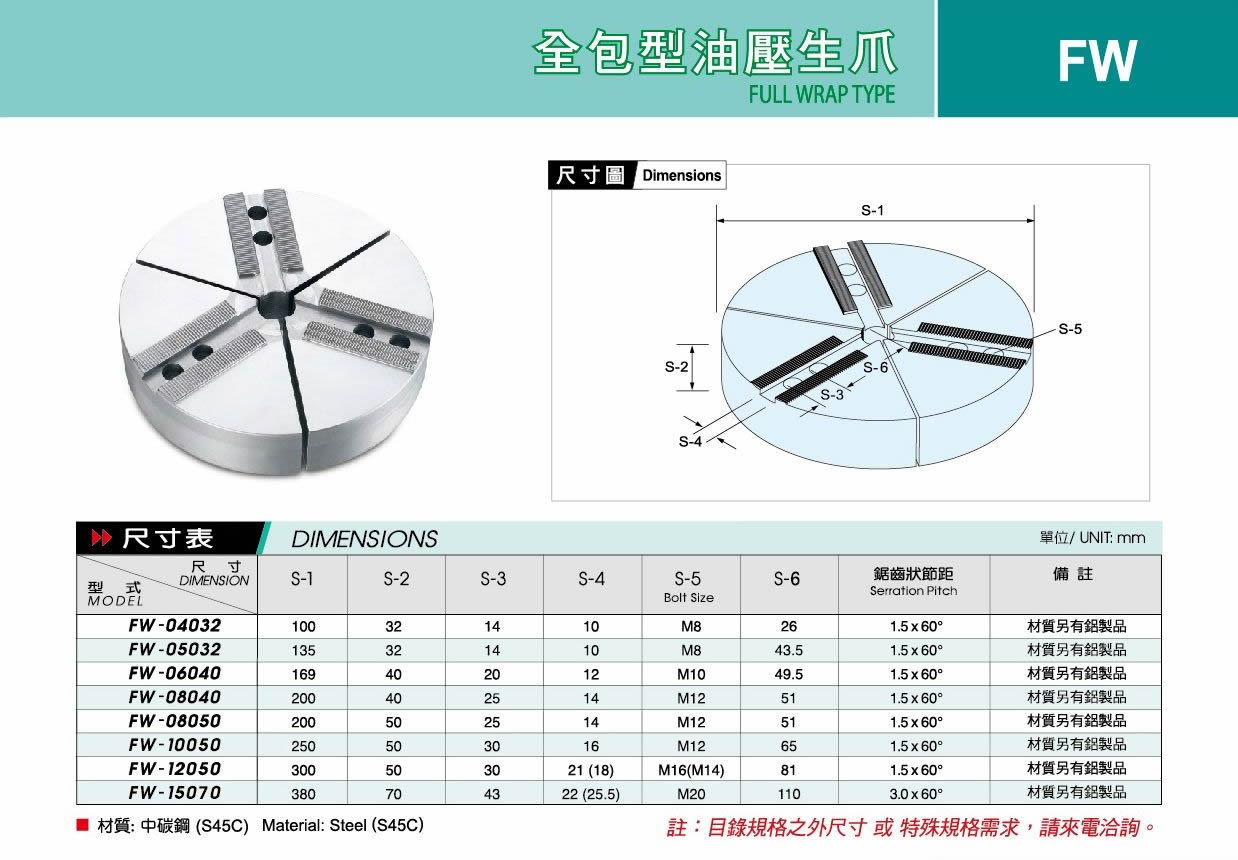

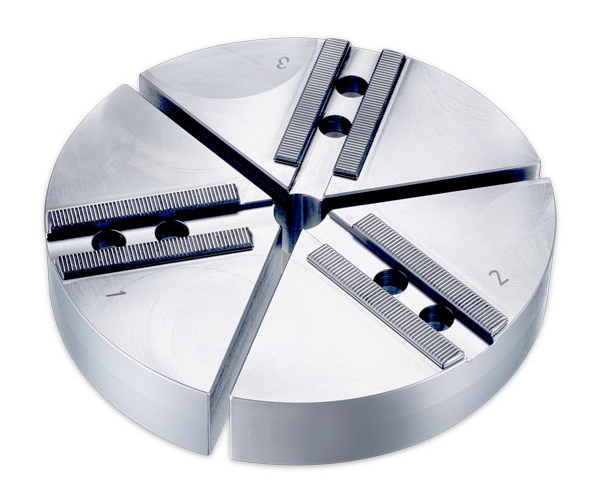

油壓生爪-全包型
Round Jaws

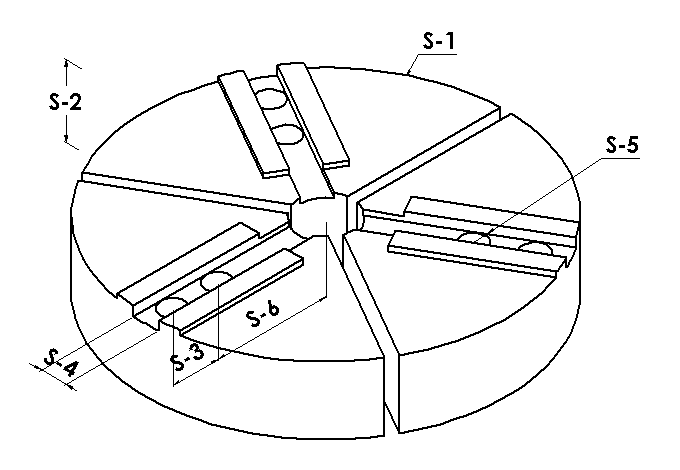

尺寸圖 Drawing
尺寸表 Dimensions
單位/UNIT: mm
| 型式 | 油壓 夾頭 |
S-1 外徑 |
S-2 高 |
S-3 孔距 |
S-4 T溝 |
S-5 螺絲 |
S-6 | 鋸齒狀 節距 |
備註 |
|---|---|---|---|---|---|---|---|---|---|
| FW-04032 |
04 | 100 | 32 | 14 | 10 | M8 | 30 | 1.5 * 60° | 鋁 |
| FW-05032 |
05 | 135 | 32 | 14 | 10 | M8 | 42.5 | 1.5 * 60° | 鋁 |
| FW-06040 |
06 | 169 | 40 | 20 | 12 | M10 | 50 | 1.5 * 60° | 鋁 |
| FW-06060 | 06 | 169 | 60 | 20 | 12 | M10 | 50 | 1.5 * 60° | - |
| FW-08040 | 08 | 200 | 40 | 25 | 14 | M12 | 60 | 1.5 * 60° | - |
| FW-08050 |
08 | 200 | 50 | 25 | 14 | M12 | 60 | 1.5 * 60° | 鋁 / 塑鋼 |
| FW-08060 | 08 | 200 | 60 | 25 | 14 | M12 | 60 | 1.5 * 60° | - |
| FW-08080 | 08 | 200 | 80 | 25 | 14 | M12 | 60 | 1.5 * 60° | - |
| FW-08100 | 08 | 200 | 100 | 25 | 14 | M12 | 60 | 1.5 * 60° | - |
| FW-10050 |
10 | 250 | 50 | 30 | 16 | M12 | 75 | 1.5 * 60° | 鋁 |
| FW-10050306 | 10 | 306 | 50 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-10050350 | 10 | 350 | 50 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-10050400 | 10 | 400 | 50 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-10060 | 10 | 250 | 60 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-10065306 | 10 | 306 | 65 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-10070 | 10 | 250 | 70 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-10080 | 10 | 250 | 80 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-10100 | 10 | 250 | 100 | 30 | 16 | M12 | 75 | 1.5 * 60° | - |
| FW-12050 |
12 | 300 | 50 | 30 | 21 | M16 | 90 | 1.5 * 60° | 鋁 |
| FW-15070 |
15 | 380 | 70 | 43 | 22 | M20 | 110 | 3.0 * 60° | 鋁 |
■ 材質: 中碳鋼 *: 另有其他材質
