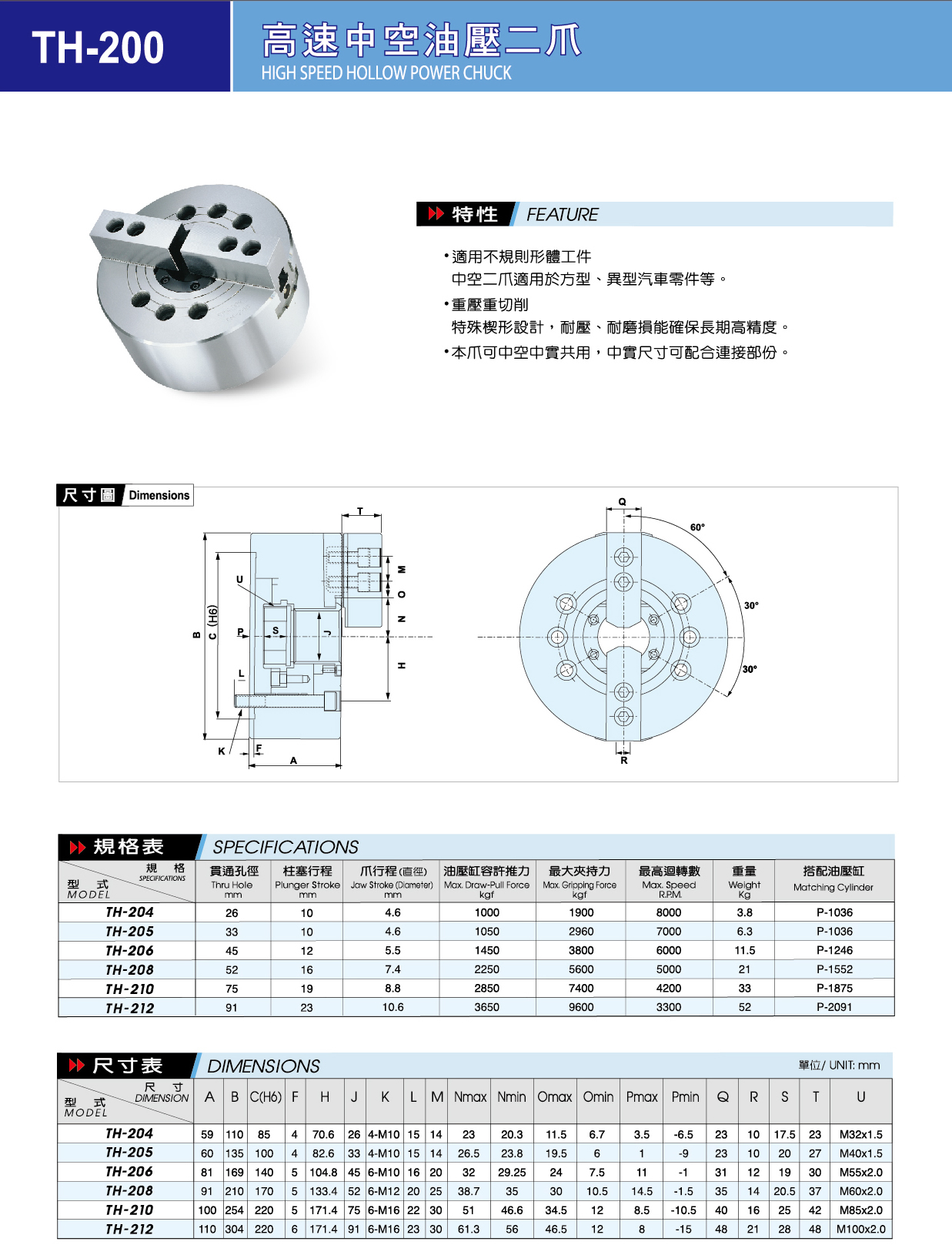

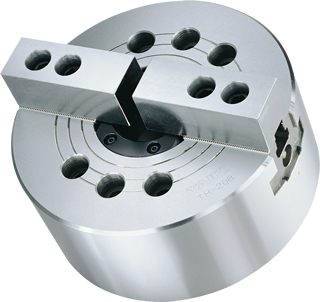

高速中空
油壓夾頭 二爪
HIGH SPEED HOLLOW POWER CHUCK

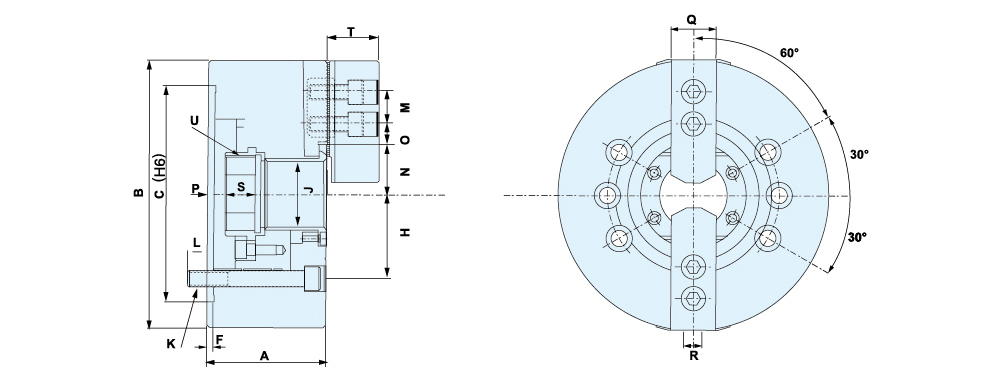

尺寸圖 Drawing
規格表 Specifications
單位/UNIT: mm
| 型式 | 貫通孔徑 | 柱塞行程 | 爪行程 (直徑) |
油壓缸 容許推力 kgf |
最大挾持力 kgf |
最高迴轉數 r.p.m. |
重量 kg |
搭配油壓缸 |
|---|---|---|---|---|---|---|---|---|
| TH-204 | 26 | 10 | 4.6 | 1000 | 1900 | 8000 | 3.8 | P-1036 |
| TH-205 | 33 | 10 | 4.6 | 1050 | 2960 | 7000 | 6.5 | P-1036 |
| TH-206 | 45 | 12 | 5.5 | 1450 | 3800 | 6000 | 11.5 | P-1246 |
| TH-208 | 52 | 16 | 7.4 | 2250 | 5600 | 5000 | 21 | P-1552 |
| TH-210 | 75 | 19 | 8.8 | 2850 | 7400 | 4200 | 33 | P-1875 |
| TH-212 | 91 | 23 | 10.6 | 3650 | 9600 | 3300 | 55 | P-2091 |
尺寸表 Dimensions
單位/UNIT: mm
| 型式 | A | B | C(H6) | F | H | J | K | L | M | N max |
N min |
O max |
O min |
P max |
P min |
Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TH-204 | 59 | 110 | 85 | 4 | 70.6 | 26 | 4-M10 | 15 | 14 | 23 | 20.3 | 11.5 | 6.7 | 3.5 | -6.5 | 23 | 10 | 17.5 | 23 | M32*1.5 |
| TH-205 | 60 | 135 | 100 | 4 | 82.6 | 33 | 4-M10 | 15 | 14 | 26.5 | 23.8 | 19.5 | 6 | 1 | -9 | 23 | 10 | 20 | 27 | M40*1.5 |
| TH-206 | 81 | 169 | 140 | 5 | 104.8 | 45 | 6-M10 | 16 | 20 | 32 | 29.25 | 24 | 7.5 | 11 | -1 | 31 | 12 | 19 | 30 | M55*2.0 |
| TH-208 | 91 | 210 | 170 | 5 | 133.4 | 52 | 6-M12 | 20 | 25 | 38.7 | 35 | 30 | 10.5 | 14.5 | -1.5 | 35 | 14 | 20.5 | 37 | M60*2.0 |
| TH-210 | 100 | 254 | 220 | 5 | 171.4 | 75 | 6-M16 | 22 | 30 | 51 | 46.6 | 34.5 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 42 | M85*2.0 |
| TH-212 | 110 | 304 | 220 | 6 | 171.4 | 91 | 6-M16 | 23 | 30 | 61.3 | 56 | 46.5 | 12 | 8 | -15 | 48 | 21 | 28 | 48 | M100*2.0 |
